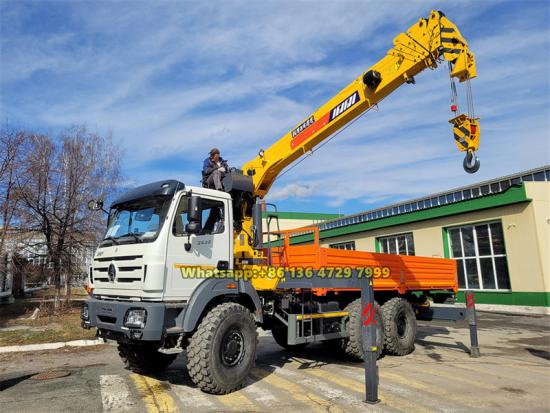

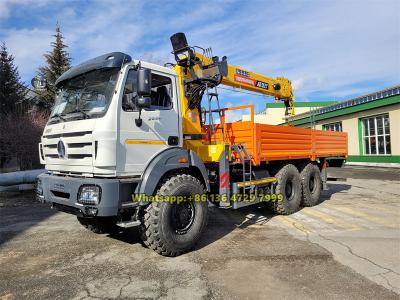

Le camion-grue tout-terrain Beiben 6×6 est un engin de chantier imposant qui combine un châssis tout-terrain renforcé et une capacité de levage performante. Grâce à son moteur robuste de 340 chevaux, sa transmission intégrale et son châssis tout-terrain professionnel, il garantit une excellente mobilité sur les terrains les plus difficiles. Équipé de la grue télescopique SQS200, il offre une capacité de levage maximale de 8 tonnes et une hauteur de travail jusqu'à 16,7 mètres. Son système hydraulique combiné à double pompe assure des opérations de levage efficaces et flexibles, ce qui en fait une solution fiable pour les travaux exigeants en zones reculées et sur les chantiers.
Prix du marché:
$35000Capacité de travail:
8000 kgType de cabine:
NG80B short cabin, 2 seatsDimensions ( mm ):
9800×2500×3980Système d'entraînement:
6×6Empattement (mm):
4450+1450Puissance du moteur:
340HP/WP10.340E32boîte de vitesses:
12JS200TRemarque:
14.00R20 tires, XCMG, palfinger/unic crane for optionLe camion-grue Beiben 6×6 à quatre roues motrices est un engin de chantier imposant qui allie robustesse et capacité de levage. Construit autour du châssis Beiben 2634, il est propulsé par un moteur diesel Weichai de 340 ch. Ce véhicule excelle en termes de capacité de charge et, grâce à sa transmission intégrale, sa boîte de vitesses FAST à 12 rapports et sa suspension d'essieu renforcée, garantit une mobilité tout-terrain exceptionnelle et une excellente tenue de charge, même dans des conditions difficiles.

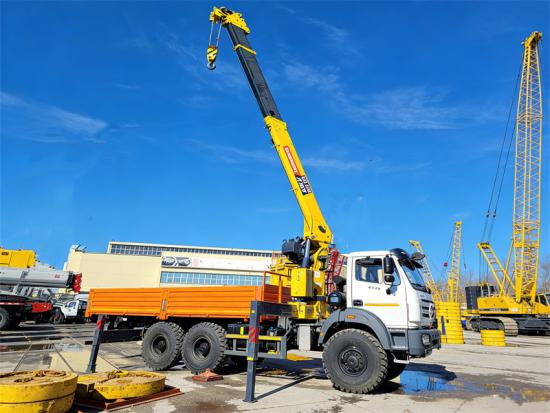

The XCMG SQS200 four-section telescopic crane offers a maximum lifting capacity of 8 tons and a lifting moment of 20 ton-meters, with an operating height of up to 16.7 meters. Its dual-pump combined hydraulic system enhances the efficiency and flexibility of combined operations.

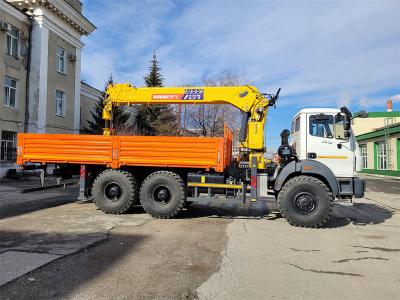

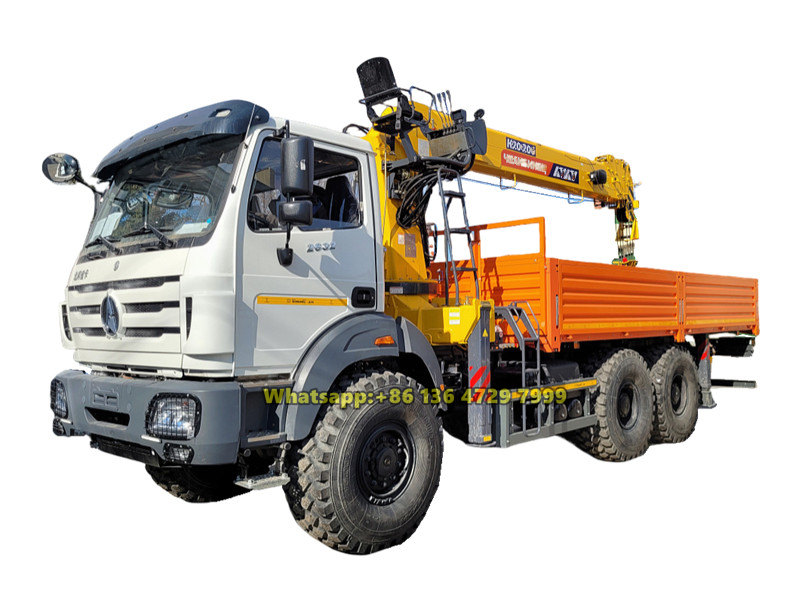

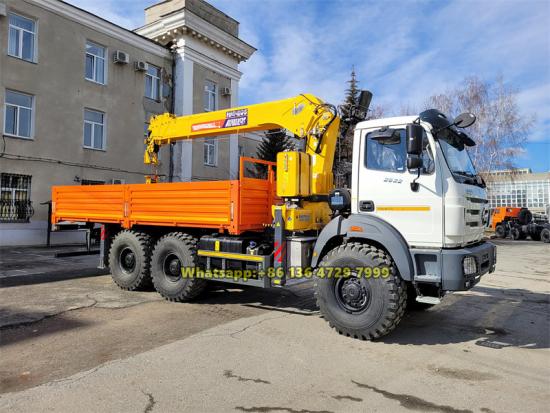

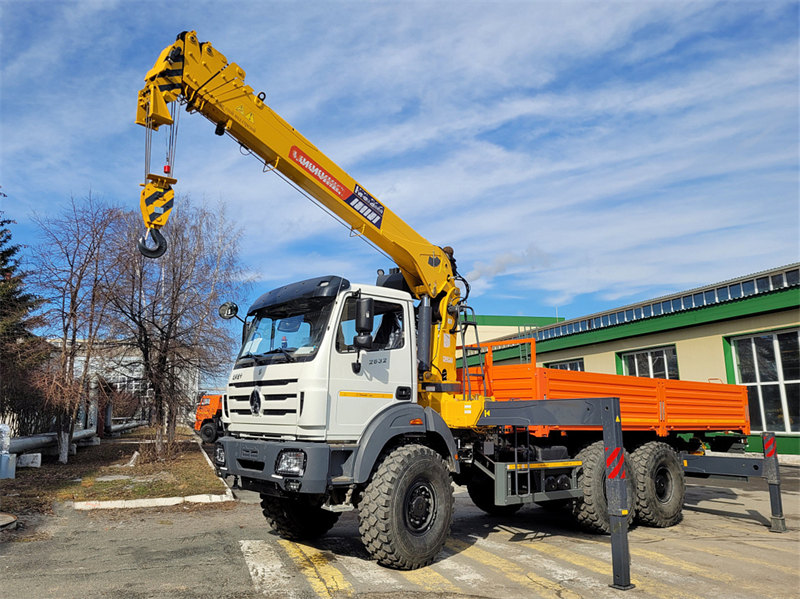

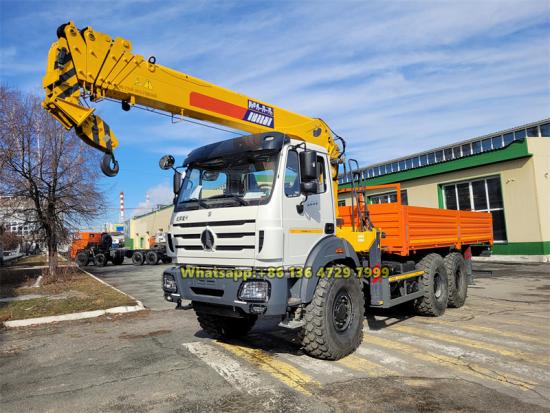

Beiben 6×6 vehicle mounted hydraulic crane
demonstrates a high degree of professionalism. The crane features a classic hexagonal boom structure and a single-cylinder wire rope synchronous telescoping mechanism, balancing structural strength with operational efficiency.
CEEC factory
is authorized supplier on beiben crane trucks,
guarantee all beiben boom crane trucks Brand-New and High-Quality.
» Ⅰ. Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×6 chassis, NG80B short cabin, Weichai 340HP diesel engine, Fast 12-speed gearbox
▶ Crane model: SQS200-4
▶ Crane lifting capacity: 8 tons
▶ Outriggers: 2 front outriggers and 2 rear outriggers
▶ Cargo box dimensions: 7000×2500×600 mm
» Ⅱ. Product Specifications:
|
Product Technical Specifications |
||
|
Product Name |
Beiben 6 × 6 off road vehicle mounted hydraulic crane |
|
|
Chassis Model |
Beiben 2634 |
|
|
Fuel type |
Diesel |
|
|
Emission Standard |
Euro 3 |
|
|
Cabin |
Beiben NG80B |
|
|

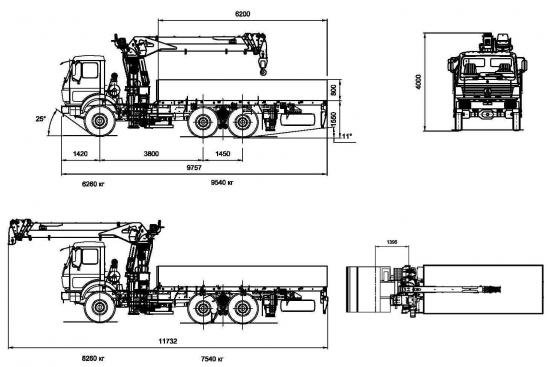

Vehicle main dimensions (mm) |
Overall dimensions (L×W×H) |
9800*2500*3980 |
|
Cargo box dimensions |
7000*2500*600 |
|
|
Wheelbase |
4450+1450 |
|
|
Front overhang |
1420 |
|
|
Rear overhang |
2850 |
|
|
Weight data (kg) |
G.V.W |
26000 |
|
Curb weight (chassis) |
14800 |
|
|
Max payload |
20000-25000 |
|
|
Vehicle main performance |
Max. speed (km/h) |
80 |
|
Max. slope of climb (%) |
30 |
|
|
Engine |
Model |
WP10.340E32 |
|
Maximum power |
250kw / 340hp |
|
|
Number of cylinders |
6 |
|
|
Displacement (L) |
9.726 |
|
|
Engine Manufacturer |
WEICHAI |
|
|
Gear box |
Brand |
FAST |
|
Type |
Manual, 12JS200T |
|
|
Number of gears |
12 forward gears & 2 reverse |
|
|
Axle |
Front load capacity |
7000 kg |
|
Rear load capacity |
13000+13000 kg |
|
|
Suspension |
Front/rear leaf spring |
10/13 |
|
Steering Wheel |
left/right hand drive |
LHD |
|
Brake system |
Service brake |
Air brake |
|
Electric device |
Rated voltage |
24V |
|
Tyres & Quantity |
14.00R20, 6+1 pcs |
|
|
Crane Specifications |
||
|
Model |
SQS200 |
|
|
Type |
Telescopic boom crane, 4 sections |
|
|
Max Lifting Capacity (kg) |
8000 |
|
|
Maximum lift height (m) |
16.7 |
|
|
Working radius (m) |
15 |
|
|
Max Lifting Moment (t.m) |
20 |
|
|
Flow of Hydraulic System (L/min) |
55+55 |
|
|
Pressure of Hydraulic System (MPa) |
25 |
|
|
Hydraulic Oil Tank Capacity (L) |
200 |
|
|
Rotation Angle (°) |
360 ° all rotation |
|
|
Crane Weight (kg) |
3370 |
|
|
Installation Space (mm) |
1300 |
|
|
Outriggers |
2 front and 2 rear |
|
|
Outrigger span (mm) |
2318~5908 |
|

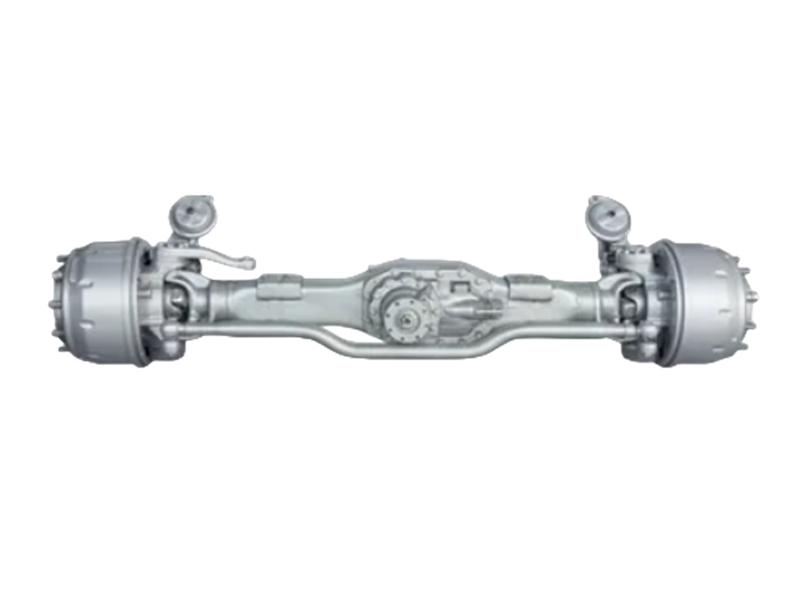

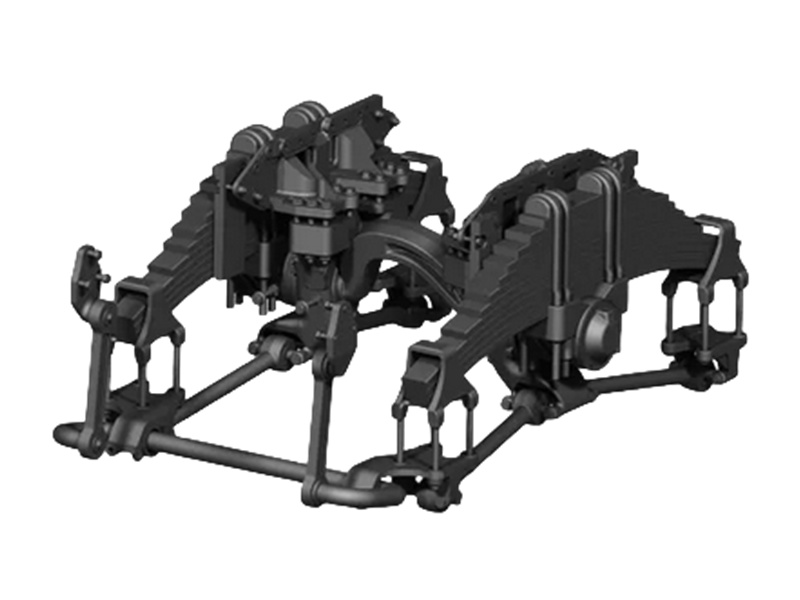

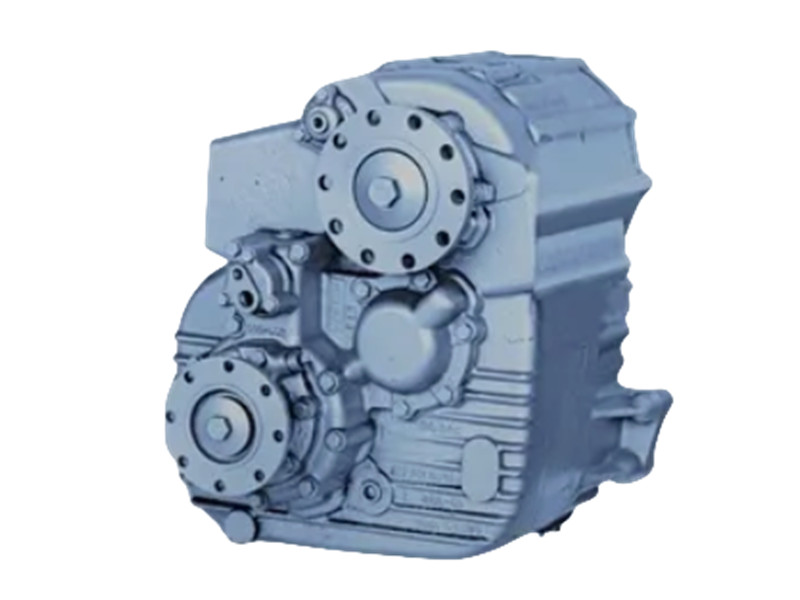

» Ⅲ. Chassis Advantages:
» Ⅳ. SQS200-4 Crane Specifications:
Crane parameters:
|
Item |
Unit |
SQS200-4 |
|
Max. lifting capacity |
kg |
8000 |
|
Max. lifting moment |
T.M |
20 |
|
Recommended power |
kw |
45 |
|
Max oil flow of hydraulic system |
L/MIN |
55+55 |
|
Max pressure of hydraulic system |
Mpa |
25 |
|
Oil tank capacity |
L |
200 |
|
Crane weight |
kg |
3370 |
|
Installation space |
mm |
1300 |
|
Rotation angle |
° |
All rotation |

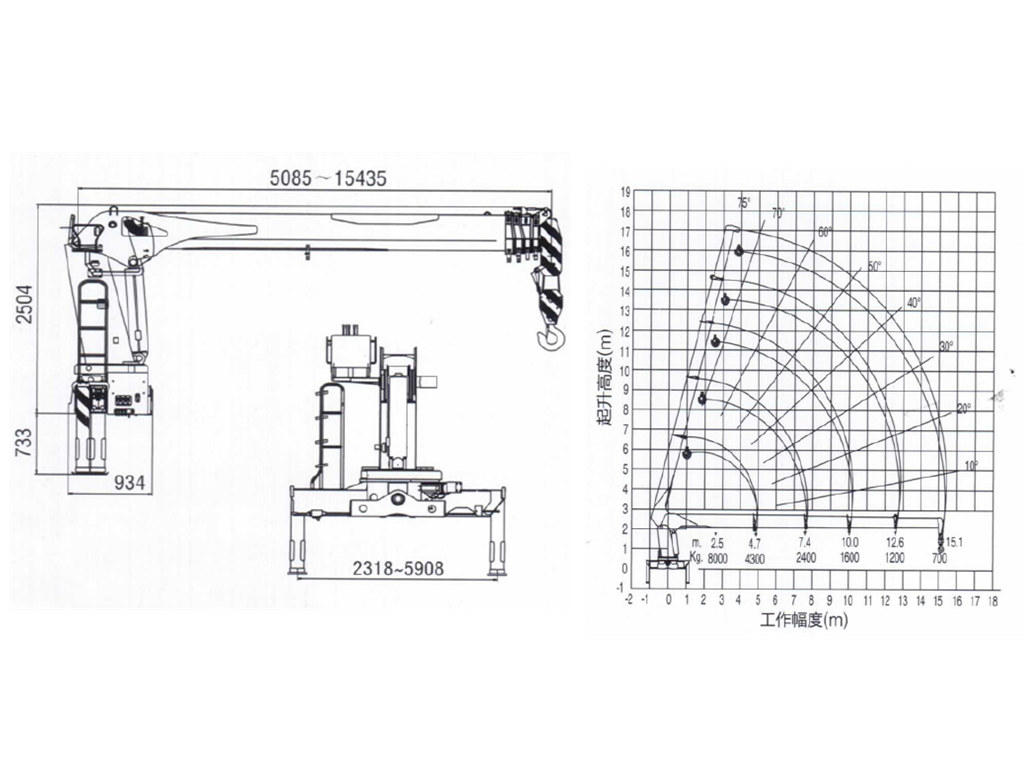

Rated lifting load
|
SQS200-4 |
|||||
|
working radius(M) |
Max lifted load(kg) of different arm lengths |
||||
|
5.1m |
7.7m |
10.3m |
12.8m |
15.4m |
|
|
5.00 |
4300 |
3800 |
3400 |
3270 |
2700 |
|
7.50 |
|
2400 |
2350 |
2250 |
1990 |
|
10.00 |
|
|
1660 |
1580 |
1500 |
|
12.50 |
|
|
|
1200 |
1100 |
|
15.50 |
|
|
|
|
700 |
» Ⅴ. Crane features and options:

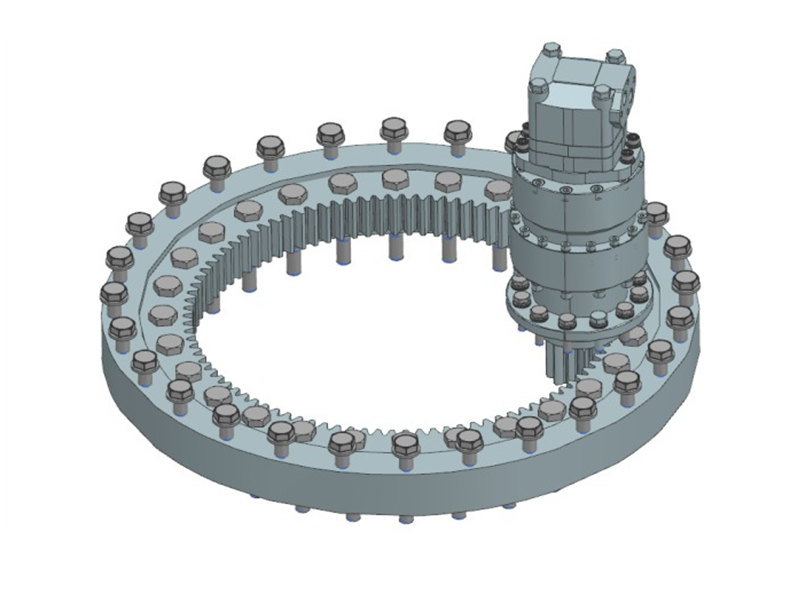

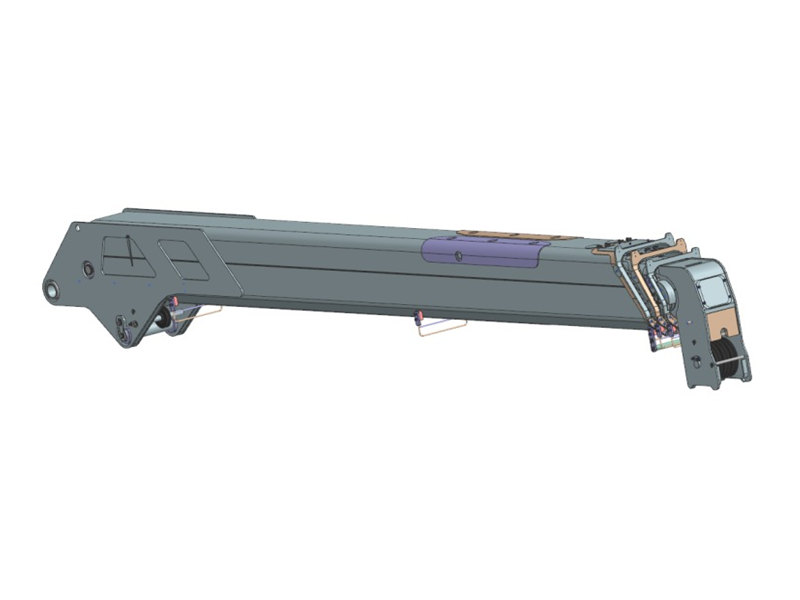

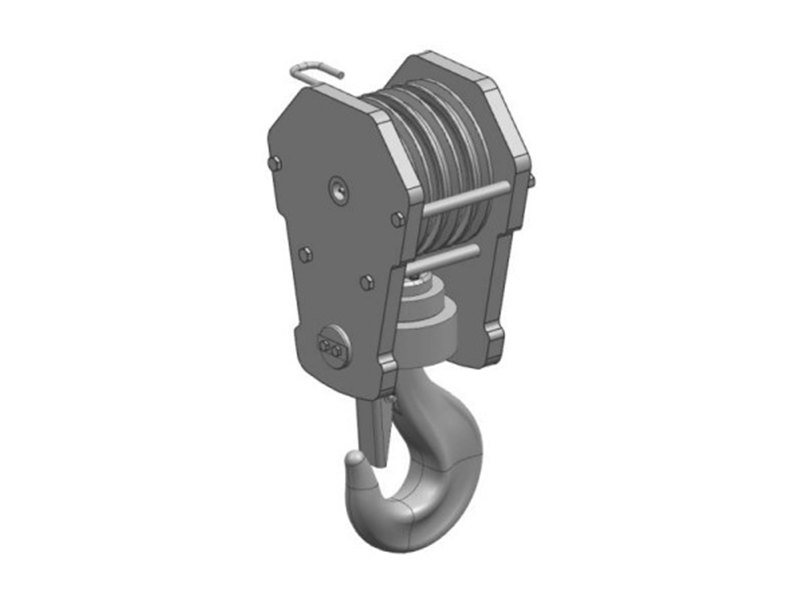

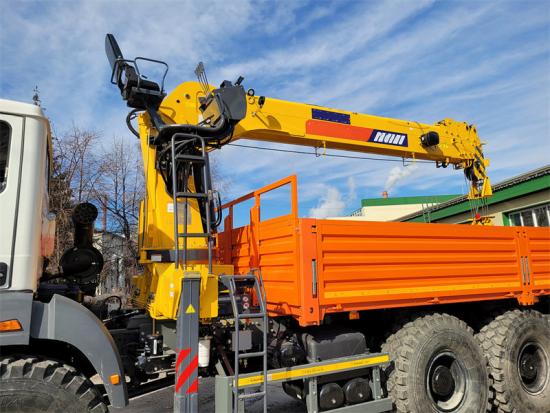

» Ⅵ. Crane Structure:

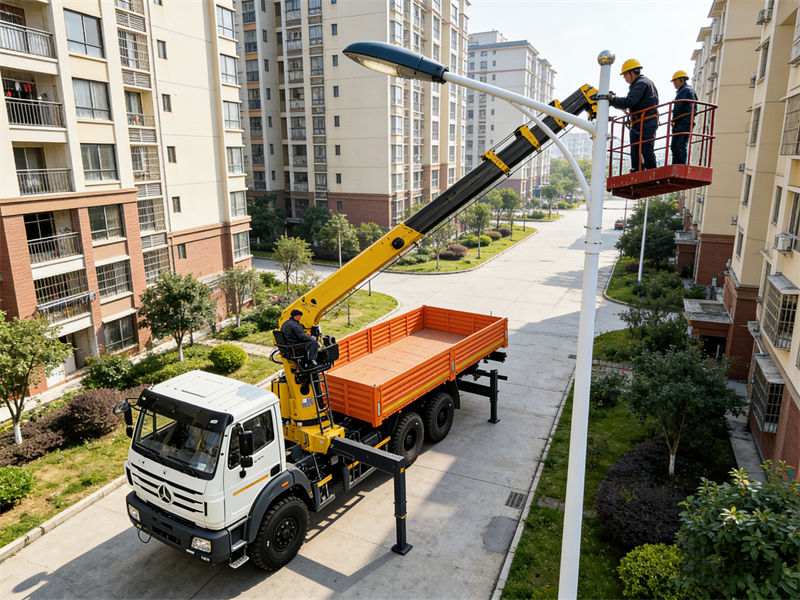

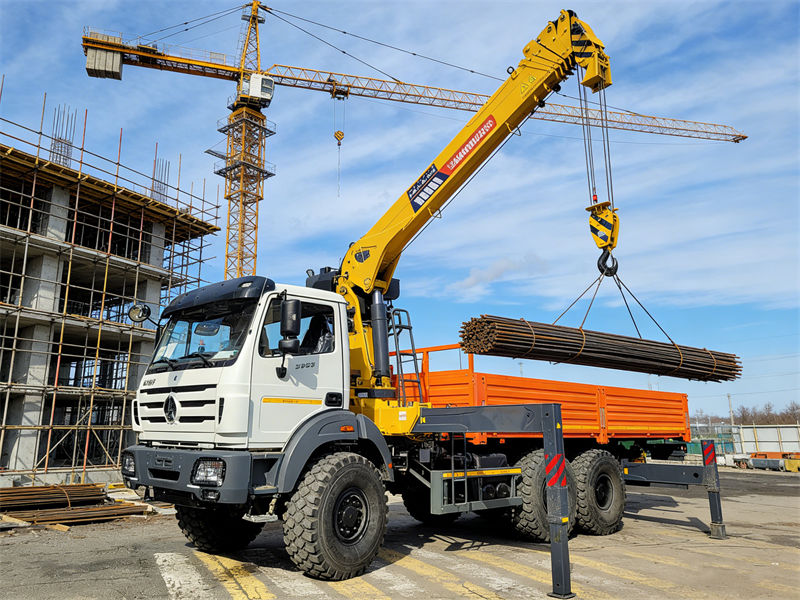

» Ⅶ . Product Applications:
Products --100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive boom crane trucks for option
2. Factory direct sale, supply Beiben crane trucks with lifting capacity 5000kg to 25000kg
3. XCMG, Palfinger, UNIC, ZOOMLION telescopic or knuckle boom cranes for option
4. Optional: remote control, moment limited valve, high sesat on column, drill, etc .
