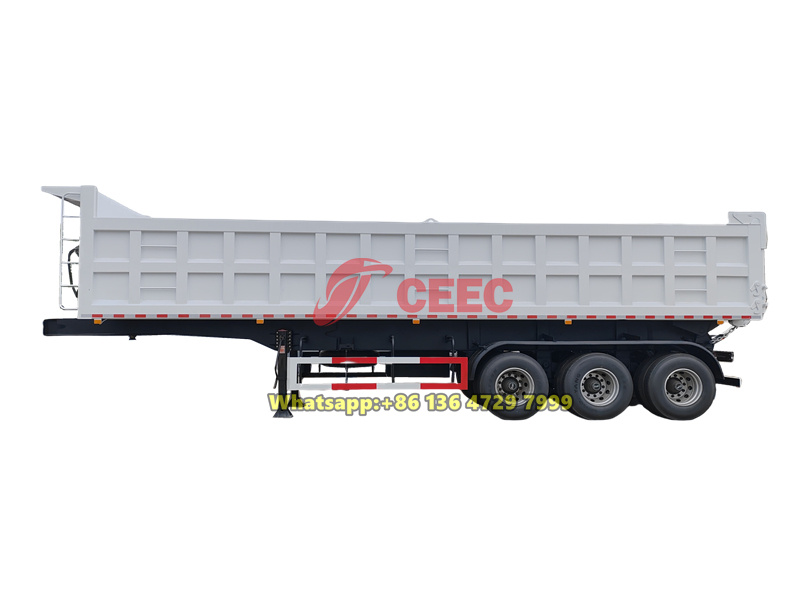

La semi-remorque benne à trois essieux est une solution fiable pour le transport de matériaux lourds. Équipée de trois essieux FUWA de 13 tonnes et d'un système hydraulique HYVA puissant et stable, elle garantit des opérations de basculement efficaces. Sa benne robuste, dotée d'un plancher renforcé de 8 mm d'épaisseur, est spécialement conçue pour résister aux conditions de travail difficiles, comme le transport de minerais et de sable.
Capacité de travail:
50 tonsDimensions ( mm ):
9800×2550×3200Type d'essieu:
FUWA, 13-ton, 3 pcsLand Gear:
JOST, 28 tonKingpin:
2' or 3.5'Suspension:
Leaf springPneus:
12.00R20Remarque:
Customized cargo box size, HYVA lifting system, BPM axles for optionLe Semi-remorque benne Côte d'Ivoire 50 tonnes Conçu pour le transport de marchandises en vrac lourdes, ce semi-remorque offre une capacité de charge exceptionnelle. Il est équipé de trois essieux FUWA de 13 tonnes et de 12 pneumatiques 12.00R20, garantissant une grande fiabilité. Son atout principal réside dans son système de levage hydraulique HYVA, reconnu pour sa robustesse et son étanchéité, permettant des opérations de déchargement rapides et efficaces. La caisse, d'une solidité remarquable, présente des dimensions standardisées de 8 900 × 2 300 × 1 500 mm, un plancher de 8 mm d'épaisseur et des ridelles de 6 mm.
» I. Présentation du produit :
Usine CEEC
est un fournisseur de premier plan de semi-remorques bennes,
Nous garantissons que toutes nos semi-remorques-citernes sont neuves et de haute qualité.
» II. Spécifications du produit :
[if gte mso 9]>
[if gte mso 9]>
[if gte mso 9]>
[if gte mso 9]>
|
Product name |
Tri-axle dumper truck semi-trailer |
|
Loading Capacity |
40-50 tons |
|
Axle |
3 pieces, 13T FUWA axle |
|
Tyre |
12 pieces, 12.00R20 |
|
Overall Dimensions |
9800mm × 2550 × 3200mm |
|
Dump body size |
8900 × 2300 × 1500mm |
|
Tare weight |
12800 kg |
|
Axle spacing |
1310mm |
|
Rims |
9.0-20 |
|
Suspension System |
Leaf spring suspension |
|
Brake System |
Dual line pneumatic brake system with WABCO emergency relay valve |
|
Main Beam |
Height 500mm Q345 |
|
Chassis |
Upper 14mm, lower 16mm. Mid web 12mm |
|
Dump Box Thickness |
Walls: 6mm; Floor: 8mm |
|
Hydraulic Cylinder |
HYVA |
|
Kingpin |
2' or 3.5' interchangeable |
|
Landing Gear |
JOST, 28 Tons, Two speed manual operation |
|
Electrical System |
1.Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) German standard |
|
Lights and Reflectors |
Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light |
|
Painting |
Shot blast to SA 2.5 Standard prior to application of primer, polyurethane top coat. Total DFT not less than 100μm; Any color will be available |
|
Tool Box |
One toolbox with a set of standard trailer tools |
|
Spare Tyre Carrier |
One piece |
[if gte mso 9]>
[if gte mso 9]>
[if gte mso 9]>
» Ⅲ. Product Features:
1. Robust Load Capacity:
Equipped with three 13-ton FUWA axles and 12 pieces of 12.00R20 tires, providing a solid and reliable load-bearing structure.
2. Efficient Self-Dumping:
Features a reliable HYVA hydraulic lifting system, ensuring powerful lifting and smooth, efficient material discharge.
3. Durable Construction:
The cargo box boasts an 8mm thick floor, with high-strength steel used in key areas, delivering exceptional impact resistance and wear durability.
» Ⅳ. Product Advantages:

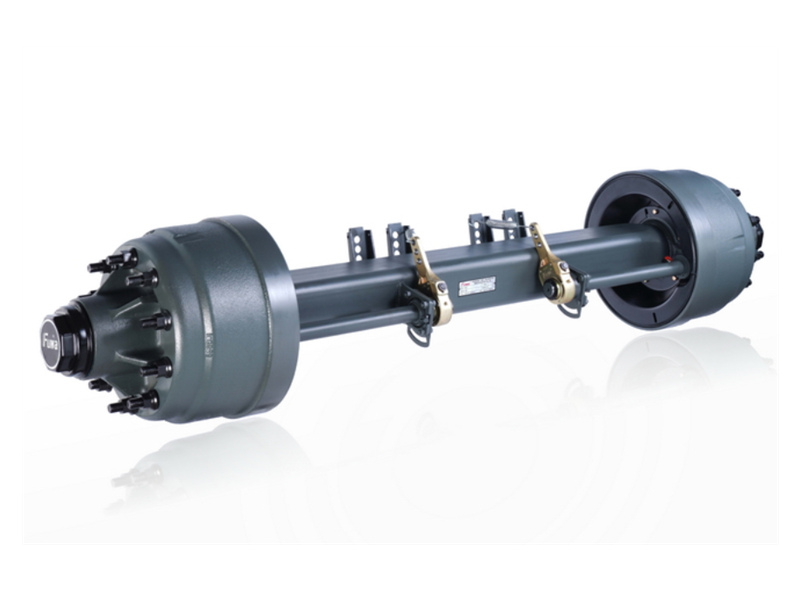

FUWA 13-ton Axles
1. Made of high-quality low-alloy steel with a one-piece axle body, heat-treated for enhanced mechanical properties, high load-bearing capacity , and strong resistance to bending .
2. The S-camshaft is machined for high precision , long service life , and flexible, reliable braking.
3. Utilizes heavy-duty specialized bearings to extend the axle's service life.

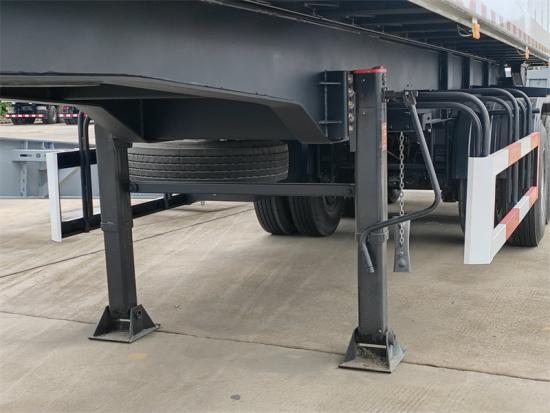

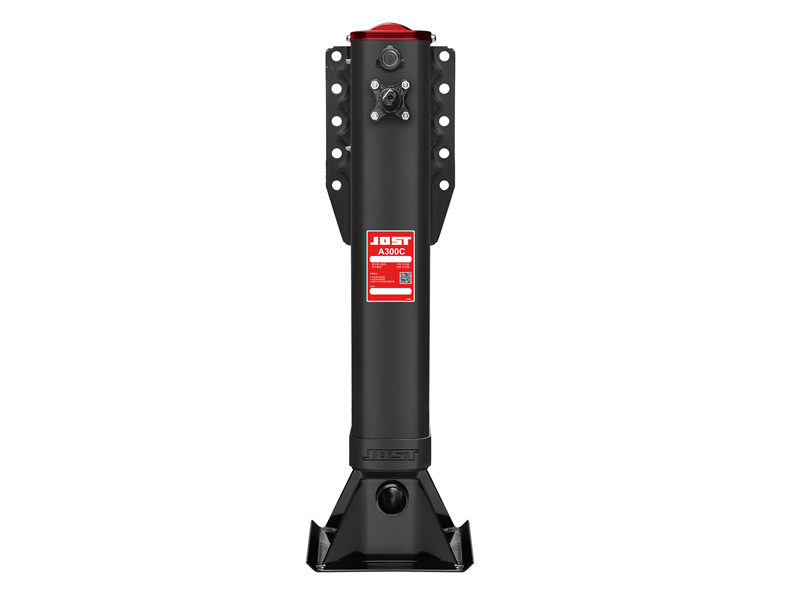

JOST Landing Gear
Model: A300C
Static Load Capacity: 75t
Lifting Capacity: 28t
High/Low Gear: 5.66mm/0.60mm per revolution
Optional Stroke: 14"/17"/19" (355mm/430mm/480mm)

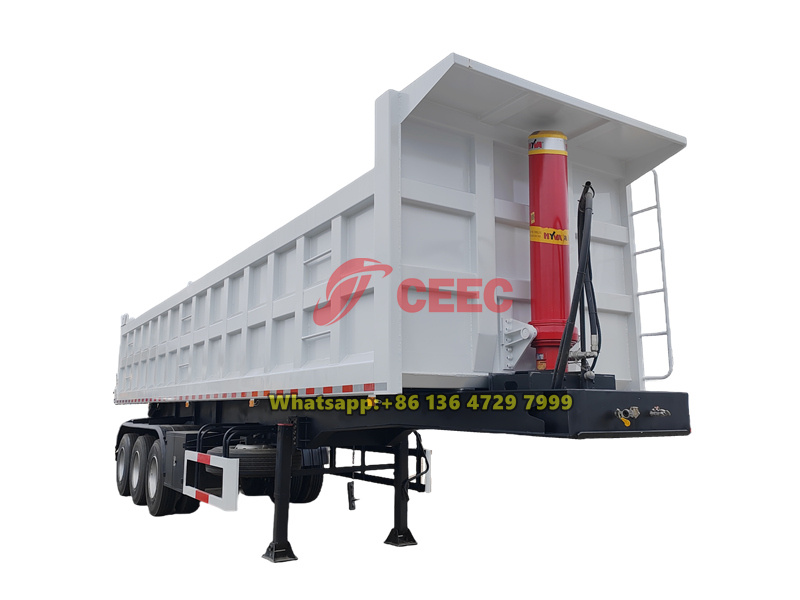

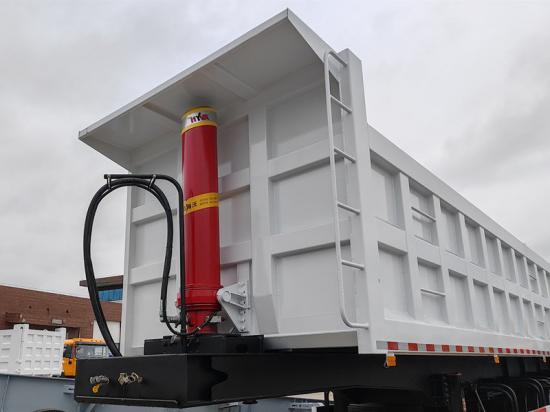

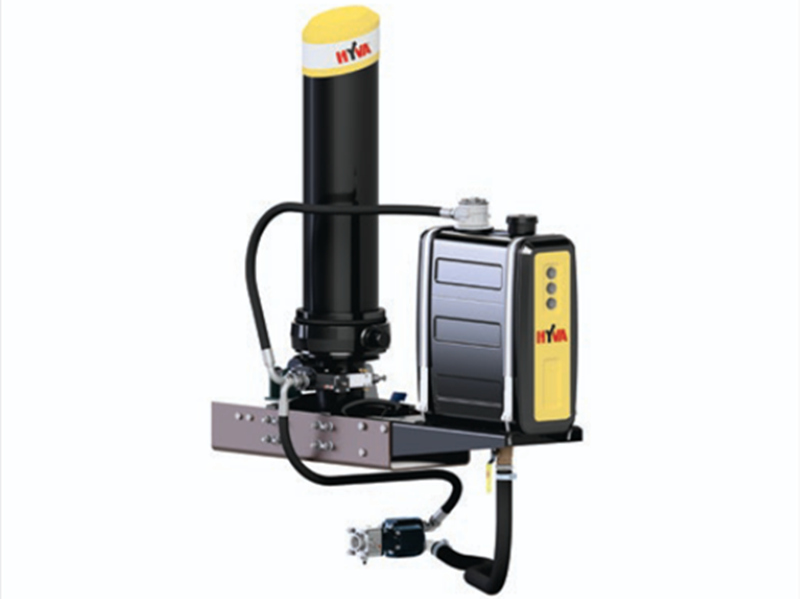

HYVA Hydraulic Lifting System
Model: FC A191
Stroke: 6725mm
Maximum Working Pressure: 250 bar
Maximum Lifting Capacity: 84 tons
Minimum Lifting Capacity: 64 tons
Effective Diameter: 191mm
Number of Sections: 5

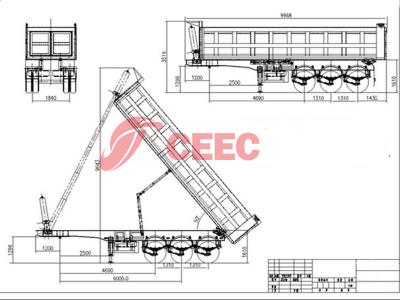

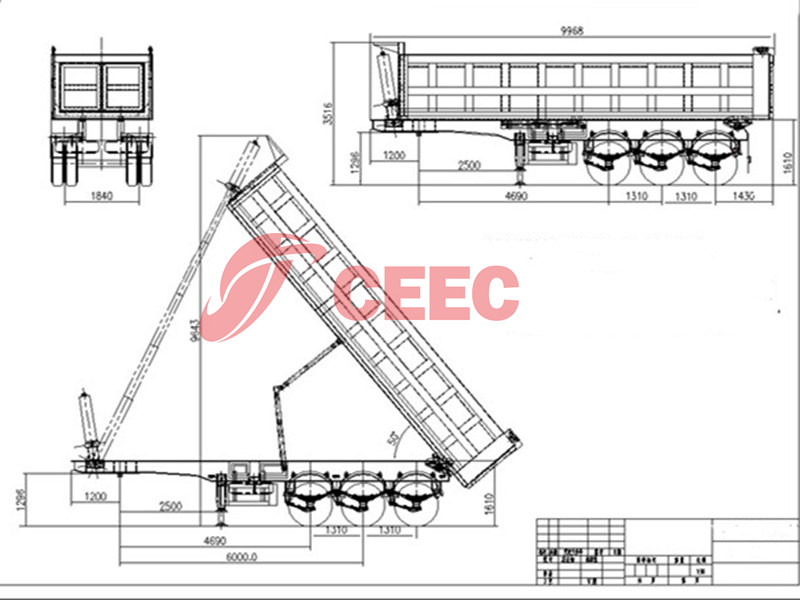

» Ⅴ. Product Drawing:
[if gte mso 9]>

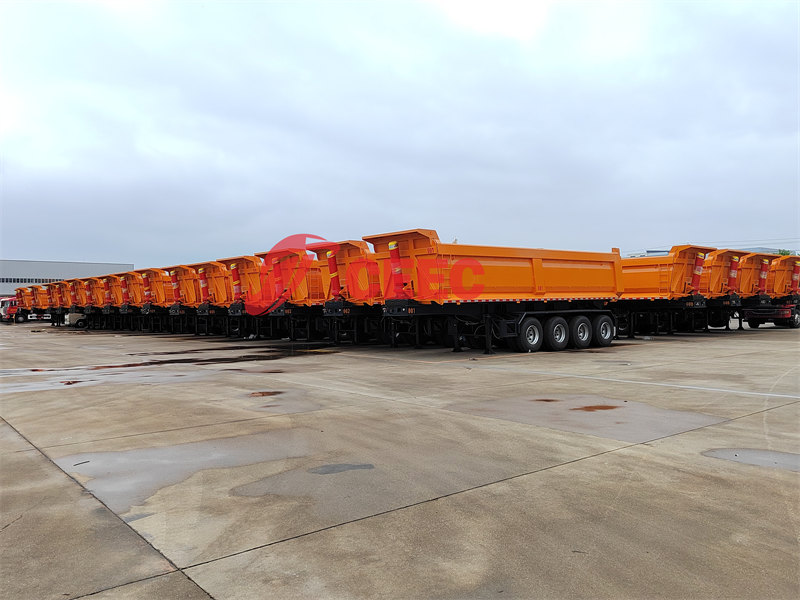

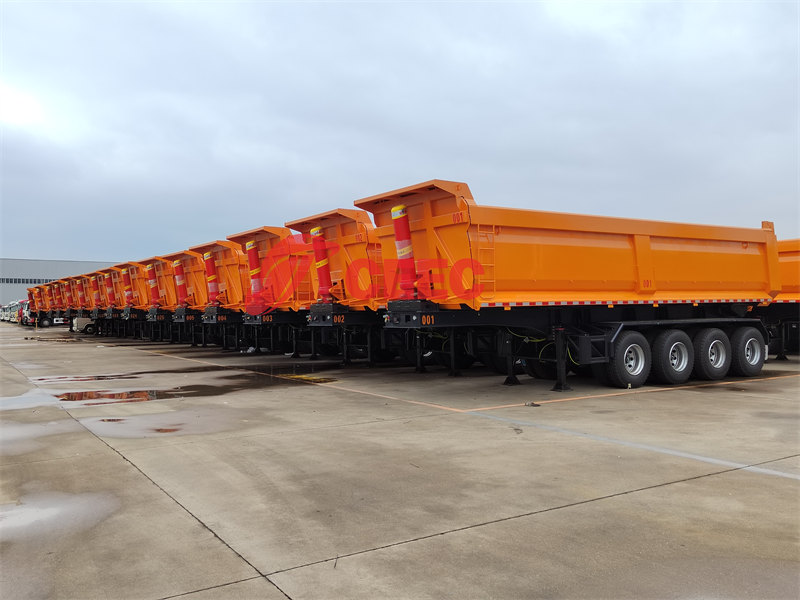

» VI. Livraison par lots de semi-remorques bennes :
Produits --Usine de semi-remorques bennes 100% chinoise !
Expédition --100% rapide, pratique et efficace !
1. Semi-remorques bennes sur mesure à 2, 3 ou 4 essieux
2. Essieux FUWA/BPM et système de levage HYVA en option
3. Prix d'usine, contrôle qualité rigoureux
4. Livraison rapide, les modèles courants peuvent être fournis sous 15 jours.
