Camion cargo tout-terrain Congo Bukavu Beiben 8x8

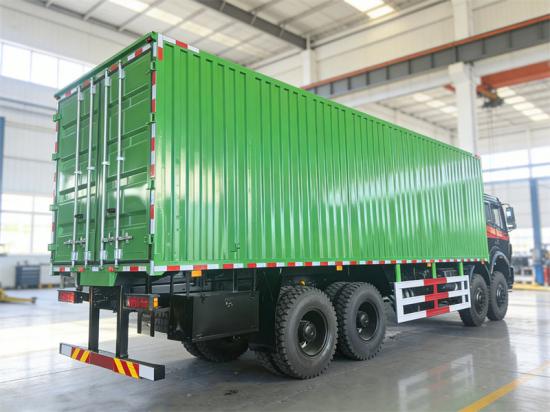

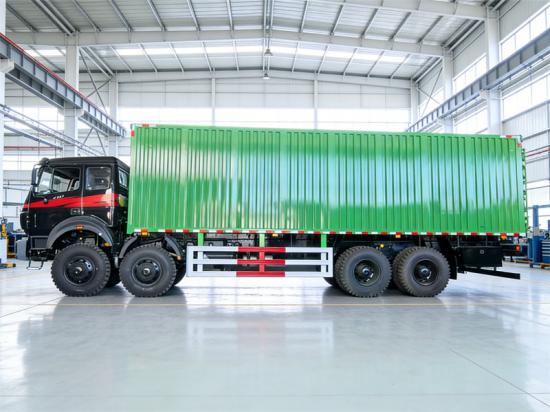

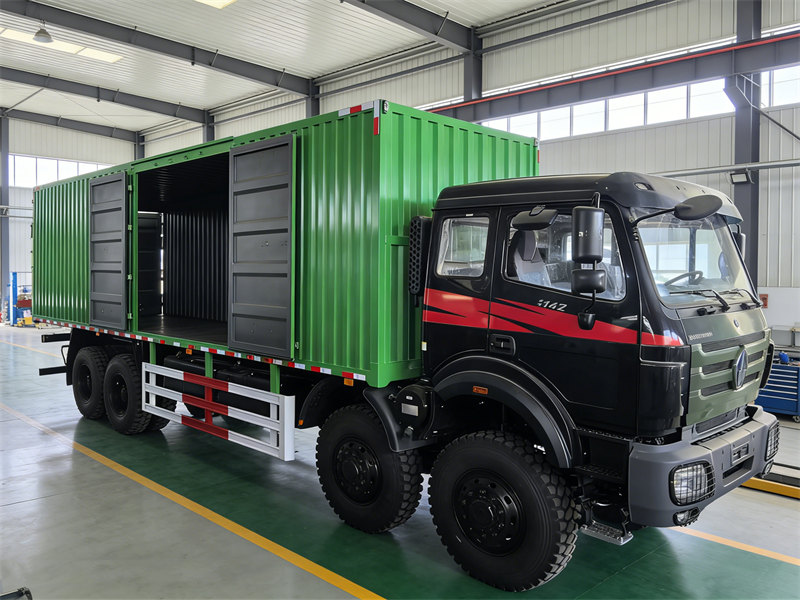

Le camion fourgon Beiben 8×8 à transmission intégrale est un véhicule utilitaire lourd conçu spécifiquement pour la logistique lourde et spécialisée. Il est équipé d'un moteur Weichai de 420 ch associé à une boîte de vitesses à 12 rapports. Grâce à sa transmission 8×8 et à son essieu à double réduction de technologie Benz, il offre une capacité de charge exceptionnelle et d'excellentes performances tout-terrain. Doté d'une benne robuste en fonte d'environ 61 mètres cubes et de deux réservoirs de carburant pour une autonomie accrue, ce véhicule répond aux exigences des opérations de transport de charges lourdes, de grande capacité et de haute fiabilité.
Prix du marché:
$72500Capacité de travail:
40 tonsType de cabine:
Beiben NG80B cabinDimensions ( mm ):
12100×2700×3470Système d'entraînement:
8×8Empattement (mm):
1500+4150+1450Puissance du moteur:
420HP/WP12.420E32boîte de vitesses:
12JS200TRemarque:
6×6, 8×4, RHD drive is optional
Le camion fourgon Beiben 8×8 à transmission intégrale est un véhicule utilitaire haute performance conçu pour le transport de charges lourdes et les conditions routières difficiles. Il est propulsé par un moteur diesel WP12.420E32 développant 420 chevaux et un couple maximal de 1 750 N·m. Associé à une boîte de vitesses manuelle à 12 rapports et à une transmission intégrale permanente, il garantit des capacités tout-terrain et une capacité de charge exceptionnelles. Le châssis est constitué d'un cadre à section variable de type « ventre de poisson » avec des suspensions à lames multiples à l'avant et à l'arrière. Combiné à un essieu moteur à double réduction avec un rapport de 5,263, le véhicule offre une capacité de charge utile importante et une excellente stabilité.

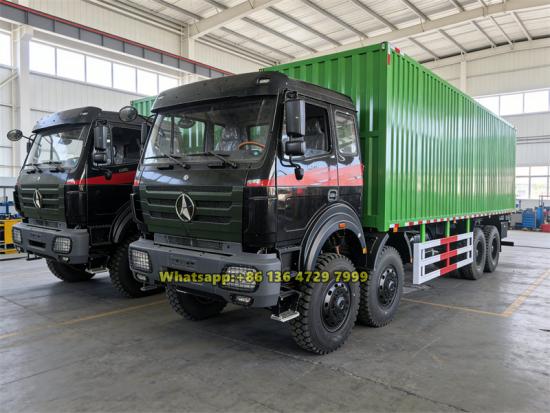

This
Beiben 8WD cargo van
is equipped with a fully enclosed cargo box measuring 9.4 meters in length, providing approximately 61 cubic meters of volume, making it suitable for transporting large-volume goods. Dual 400-liter iron fuel tanks enable an extended operating range, while a maximum speed of 90 km/h balances efficiency and safety. The cab is an NG80B long-roof, double-bunk version, featuring an air-suspension seat and a digital instrument panel to enhance comfort during long-haul drives. Whether in mountainous areas, construction sites, or long-distance trunk routes, this rugged and reliable all-wheel-drive van is capable of handling a wide range of heavy-duty transportation tasks.
CEEC factory
is authorized supplier on beiben 8x8 off-road trucks,
guarantee all beiben 8x8 drive trucks Brand-New and High-Quality.
» Ⅰ. Product Defination and Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben heavy-duty chassis, 8×8 all-wheel-drive
▶ Engine: Weichai WP12.430E32 diesel engine, 6-cylinder, Euro 3
▶ Transmission: FAST 12JS200T, 12-speed forwards and 2-speed reverse
▶ Tires: 12.00R24
▶ Van body: 9400x2500x2600mm
» Ⅱ. Product Specifications:
|
Beiben 8 × 8 AWD Box Van Truck |
||
|
Wheelbase(mm) |
1500+4150+1450 |
|
|
L*W*H |
12100X2700X3470 |
|
|
Curb weight(kg) |
14800 |
|
|
Front overhang/rear overhang (mm) |
1435/2855 |
|
|
Front wheel track (mm) |
1995/1995 |
|
|
Rear wheel track (mm) |
1800/1800 |
|
|
Approach angle/Departure angle |
33/20 |
|
|
Max Speed:(Km/h) |
90 |
|
|
Engine |
Model |
WP12.420E32 |
|
Type |
water-cooled, four strokes, 6 cylinders straight in line, turbocharged |
|
|
Fuel type |
Diesel |
|
|
Min rate of consuming fuel(g/(kw.h)) |
196g/kw.h |
|
|
Rated Power / rotating(kw/(r/min) |
319Kw(420HP)/2200rpm |
|
|
Emission |
EURO 3 |
|
|
Maximum Torque / rotating speed (n.m/(r/min) |
1750Nm/1500-1800rpm |
|
|
Displacement(ml) |
11.596 |
|
|
Fuel tanker capacity(L) |
400L+400L Iron |
|
|
Transfer case |
LF200 |
|
|
Clutch |
Model |
#430, Single dry frictional disc, Hydraulic boosting |
|
Gearbox |
Model |
12JS200T mechanical type, mechanical type, Based on Fuller Eaton technology, 12 Forward speed gear. |
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
Assistant brake |
Engine exhaust brake |
|
|
Park brake |
Potential springs pressing on middle and rear wheels |
|
|
Steering system |
Model |
8098 whole circulation in ball type, hydraulic boosting |
|
Suspension System |
Front Suspension |
Non-free standing leaf spring, telescopic shock absorber with stabilizer bar suspension,12/12 pcs springs. |
|
Rear Suspension |
Non-free standing stabilization spring, stabilization suspension,13 pcs springs |
|
|
Frame |
Fish belly shape, variable width, variable sections, Based on Germany Benz Technology |
|
|
Cross section dimension of frame(mm) |
317×70×8.5+7+8mm |
|
|
Double Front axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, 7500+7500kg |
|
|
Middle and Rear axle (Mercedes Benz Technology) |
Double-shoe pneumatic brake, ductile casting casing, with hub redactor, 13000kg+13000kg double reduction driving axle, speed ratio5.263 |
|
|

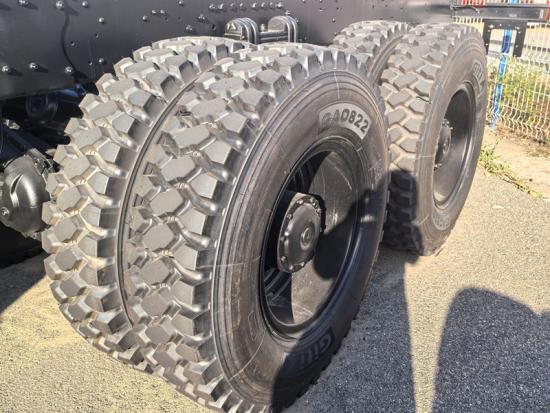

Tire |
12.00R24 radial tire |
|
|
Electrical system |
Battery |
2X12V/135Ah |
|
Generator |
28V-70A |
|
|
Starter |
5.58Kw/24V |
|
|
Cab |
NG80B
|
|
|
Interior trimming:
|
||
|
Exterior trimming:
|
||
|
Other specifications |
Two layer air filter |
|
|
Upper body specifications |
||
|

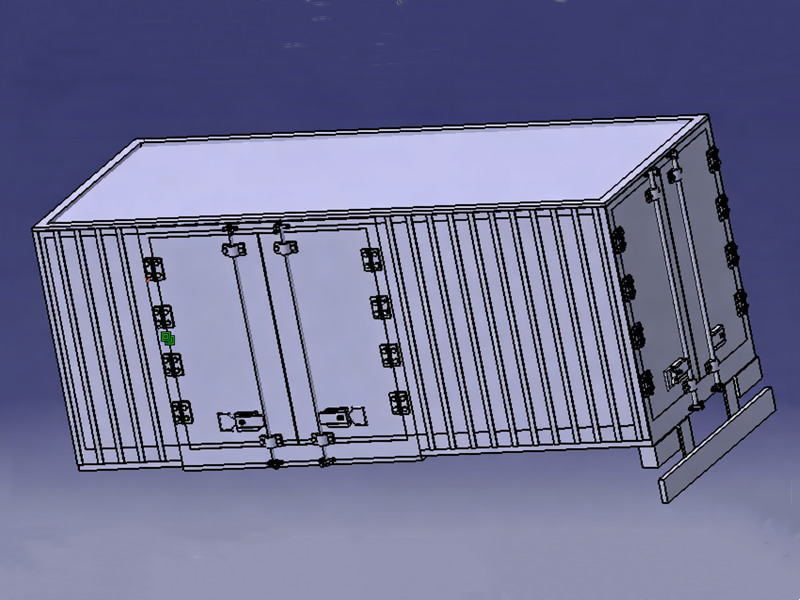

Van body dimensions |
9400x2500x2600mm |
|
|
Van body material |
Corrugated iron sheet |
|
|
Thickness |
3mm |
|
» Ⅲ. Product Advantages:
Beiben NG80B cabin
Beiben NG80B long cabin
2 seats with one sleeper bed
Full steel skeleton structure
Can be tipped forwardly

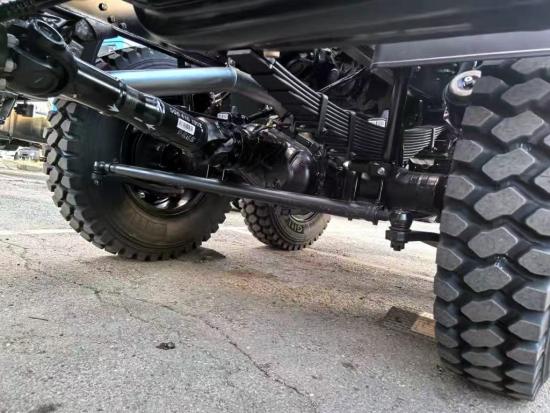

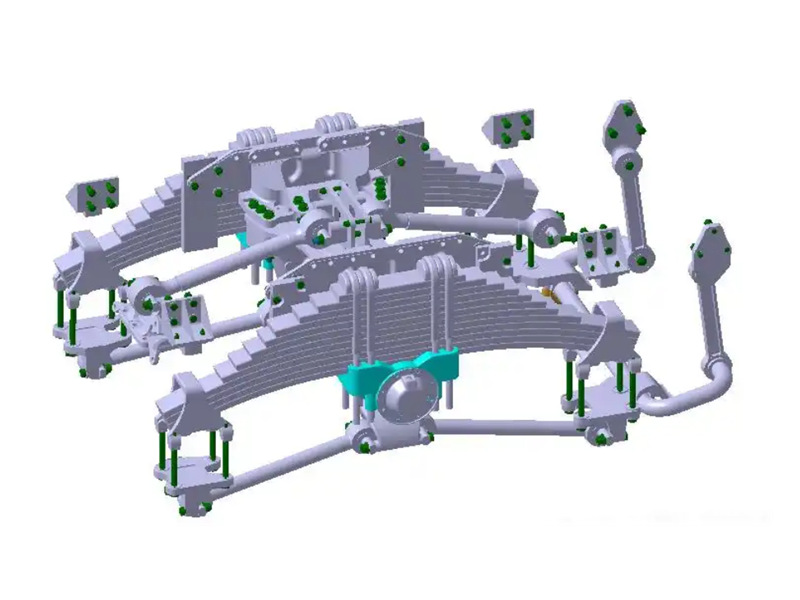

Reinforced suspension
Front leaf springs: 12/12 pcs
Rear leaf springs: 13 pcs
Number of U-shape bolts: 4

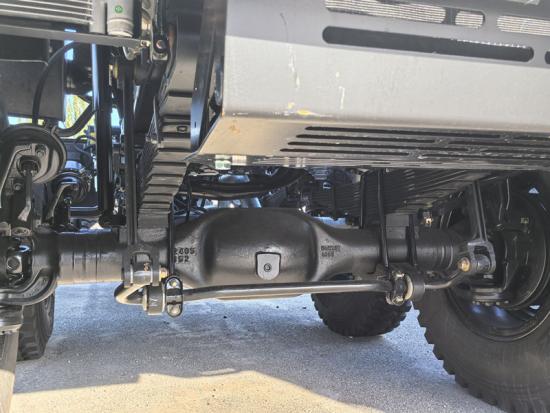

Strong axles
Front axles: driving axle, 7500kg+7500kg
Rear axles: driving axle, 13000kg+13000kg
» Ⅳ. Product Drawing:

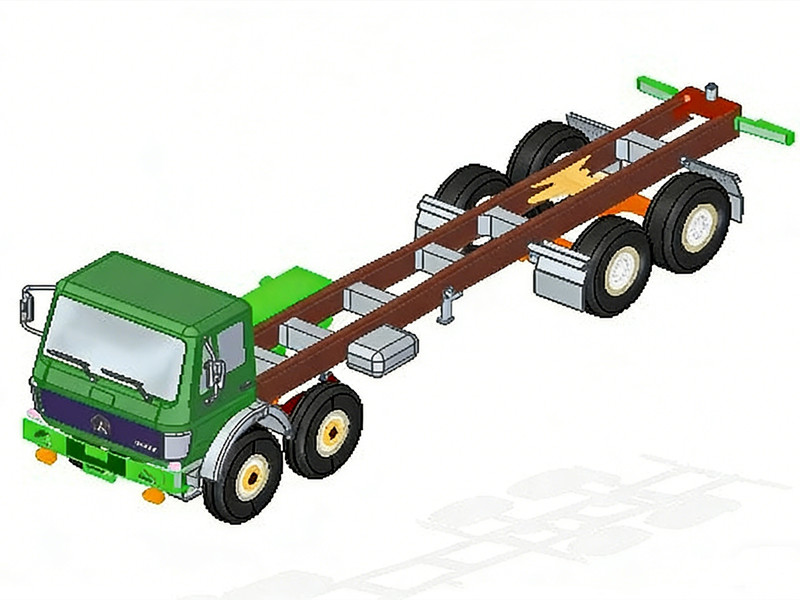

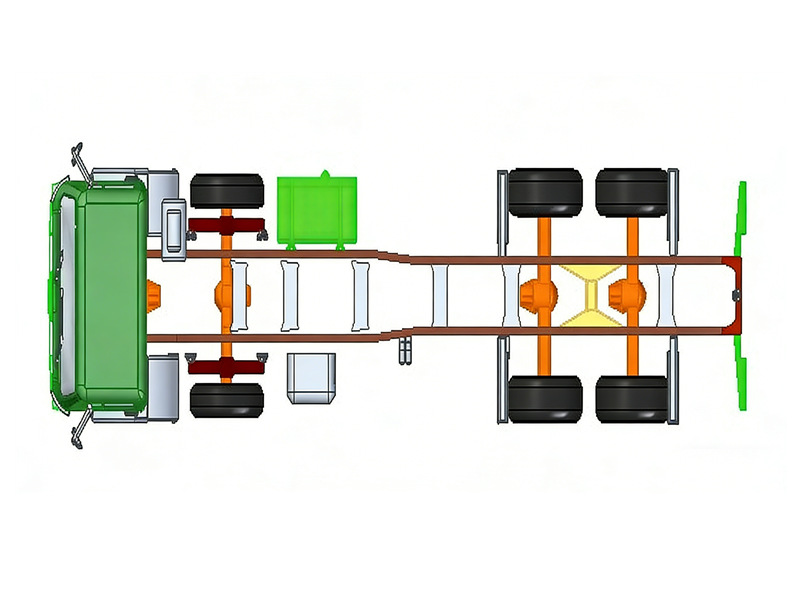

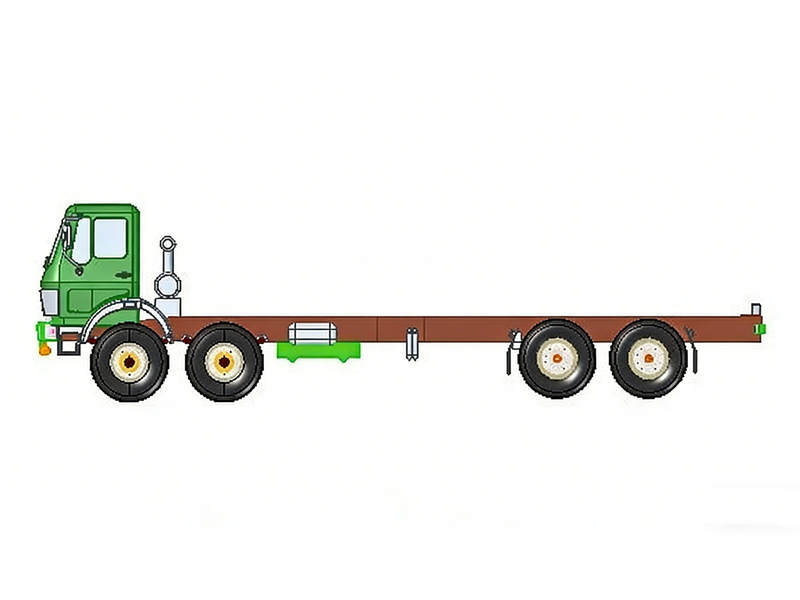

Chassis drawing
