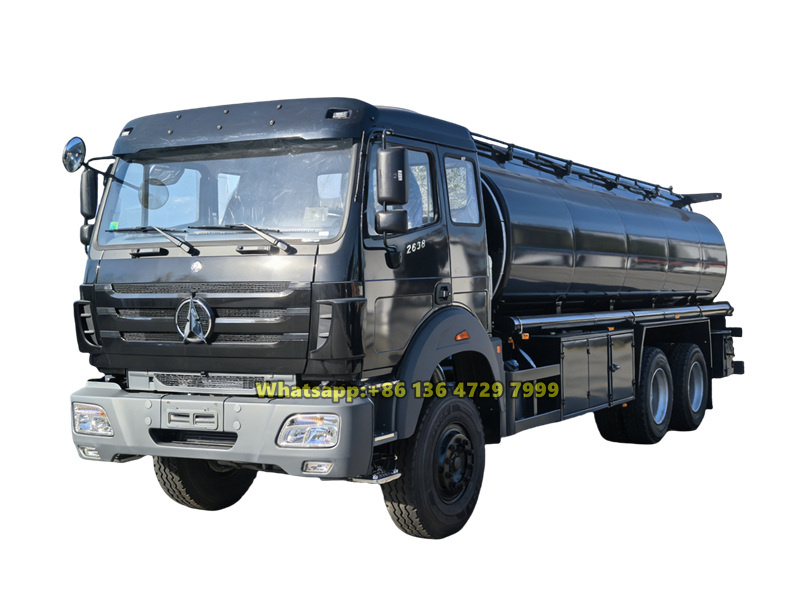

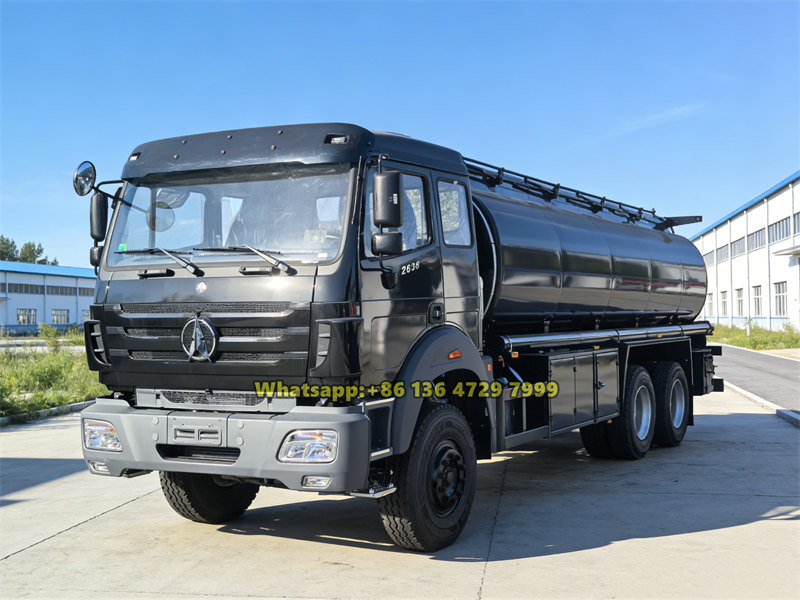

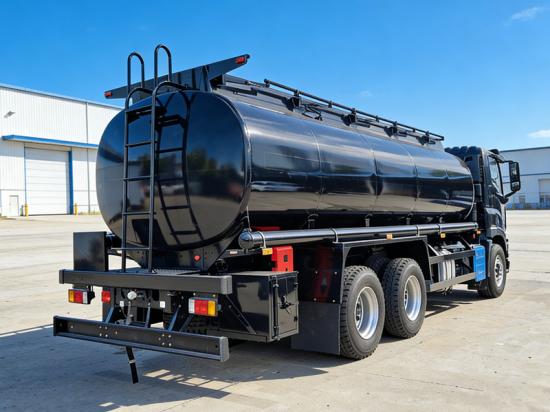

Camion-citerne à carburant Beiben 20000L au Cameroun
Le camion-citerne Beiben est un véhicule professionnel conçu pour le transport de carburant sur moyennes et longues distances. Construit sur le châssis robuste Beiben ND1260, il est propulsé par un moteur de 380 chevaux conforme à la norme Euro III. Le véhicule est équipé d'une cuve en acier au carbone de 20 000 litres divisée en cinq compartiments, permettant le chargement séparé de différents types de carburant. Grâce à son système de chargement par le bas performant, il allie efficacement grande capacité de transport et facilité d'utilisation.
Prix du marché:
$36500Capacité de travail:
20000 litersType de cabine:
NG80B long cabin, with sleeperDimensions ( mm ):
9800×2550×3200Système d'entraînement:
6×4Empattement (mm):
4450+1450Puissance du moteur:
380HP/WP10.380E32boîte de vitesses:
9JS150ARemarque:
5 compartments, stainless steel, aluminum alloy tanker is optional
Un camion-citerne est un véhicule spécialisé dans le transport et le stockage de liquides tels que le carburant. Il se compose principalement d'un châssis, d'une citerne, d'une prise de force, d'une pompe à carburant et d'un système de canalisations, offrant des fonctions comme le stockage et le transport compartimentés, ainsi que le pompage et le vidage. Le camion-citerne Beiben est basé sur un châssis Beiben 6×4 renforcé, équipé d'un moteur diesel de 380 chevaux offrant une puissance robuste tout en respectant la norme Euro III. Sa structure et son essieu arrière à double réduction sont conçus pour résister aux conditions d'utilisation les plus exigeantes, et son système de freinage pneumatique garantit un transport longue distance sûr et stable.
This
Beiben fuel bowser truck
is fitted with a 20,000-liter carbon steel tank body, divided into five independent compartments to enable the segregated transportation of multiple fuel types. The tank integrates a bottom-loading system and aluminum alloy valves, along with anti-slip walkways and multiple discharge hoses, ensuring both operational efficiency and safety. With its solid overall design, the vehicle serves as an efficient and practical asset in the field of fuel transfer.
CEEC factory
is authorized supplier on beiben tanker trucks,
guarantee all beiben fuel tanker trucks Brand-New and High-Quality.
» Ⅰ. Product Introduction:
Manufacturer: CEEC TRUCKS
▶ Chassis: Beiben 6×4 chassis, NG80B long cabin, Weichai 380HP diesel engine, Fast 12-speed gearbox
▶ Tank body: Carbon steel tanker body, with 20000 liters capacity
▶ Compartment: 5 independent compartments, each compartment has 4000 liters capacity
▶ Fuel pump: China top brand fuel pump, with flow rate 60 m3/h
▶ Loading system: Bottom loading system
» Ⅱ. Product Specifications:
|

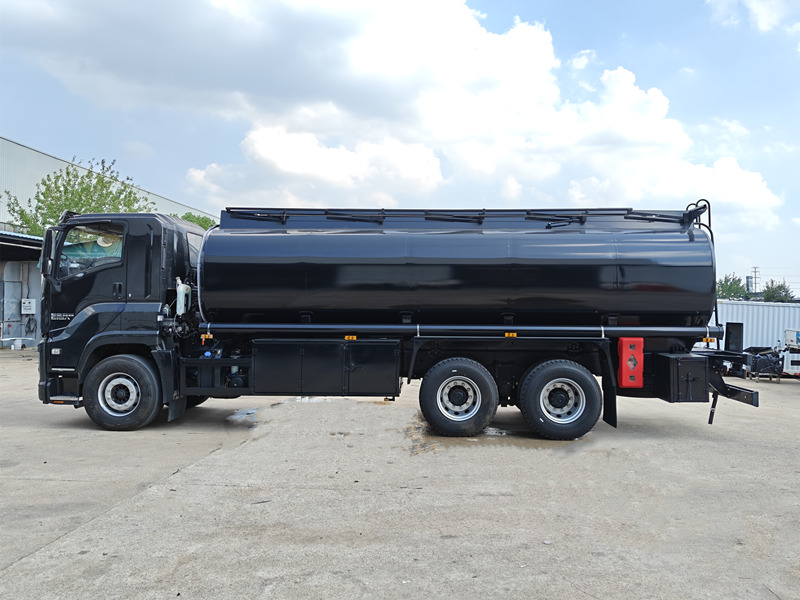

Beiben 6 × 4 fuel bowser truck specifications |
||
|
Chassis Model |
ND1260 |
|
|
Cabin |
Beiben NG80B Long Cabin, with two seats and one bed, with Air Conditioner. |
|
|

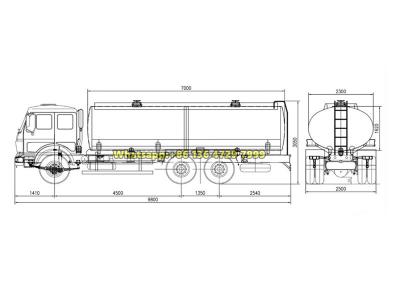

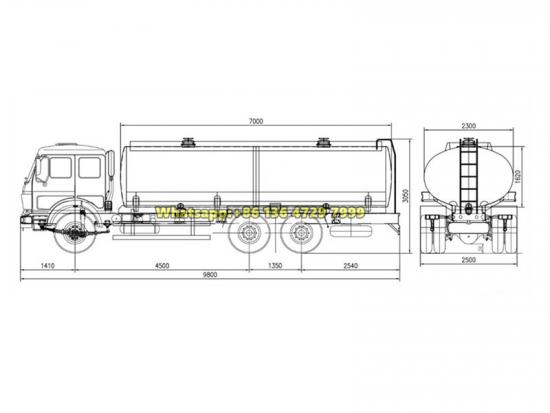

Overall dimensions |
9800 × 2550 × 3250 mm |
|
|
GVW |
26000 kg |
|
|
Curb weight |
11800 kg |
|
|
Wheelbase |
4450+1450 mm |
|
|
Engine |
Model |
WP10.380E32 |
|
Power |
380HP (280KW) |
|
|
Displacement |
9726 ml |
|
|
Emission standard |
Euro 3 |
|
|
Rated speed |
2200 rpm |
|
|
Max. Toruqe (Nm/rpm) |
1600/1500-1800 |
|
|
Type |
6-cylinder in-line with water cooling, turbo charger and intercooling, 4-stroke direct injection diesel engine |
|
|
Transmission |
FAST 9JS150A, 9 speeds forward and 1 speed reverse. |
|
|
Front Axle |
7500kg |
|
|
Driving Axle |
2 × 13000kg, dual-reduction axles, ratio:5.263 |
|
|
Leaf Springs |
10/13 pcs |
|
|
Steering System |
ZF8098 , Hydraulic steering with power assistance |
|
|
Brake System |
Service brake: Dual circuit compressed air brake; Parking brake (emergency brake): Spring energy, compressed air operating; Auxiliary brake: Engine exhaust brake |
|
|
Tire |
12.00R20 |
|
|
Fuel Tank (L) |
400L |
|
|
Upper-body specifications |
||
|
Tank |
Tank Capacity(L) |
20,000 |
|
Tank Material |
Carbon Steel, 5mm thick |
|
|
Nos of Compartments |
5 |
|
|
Fuel pump |
Model |
80YHCB60 |
|
Flow rate |
60 m 3 /h |
|
|
Working pressure |
0.6 Mpa |
|
|
Speed |
970 rpm |
|
|
Self-suction height |
7 m |
|
|
Others |
Manhole cover |
Aluminium alloy European standard with breath valve, oil-gas recycle valve, dip hatch, anti-overflow valve, 5 pcs |
|
Bottom valve |
Aluminium alloy material, 5 pieces |
|
|

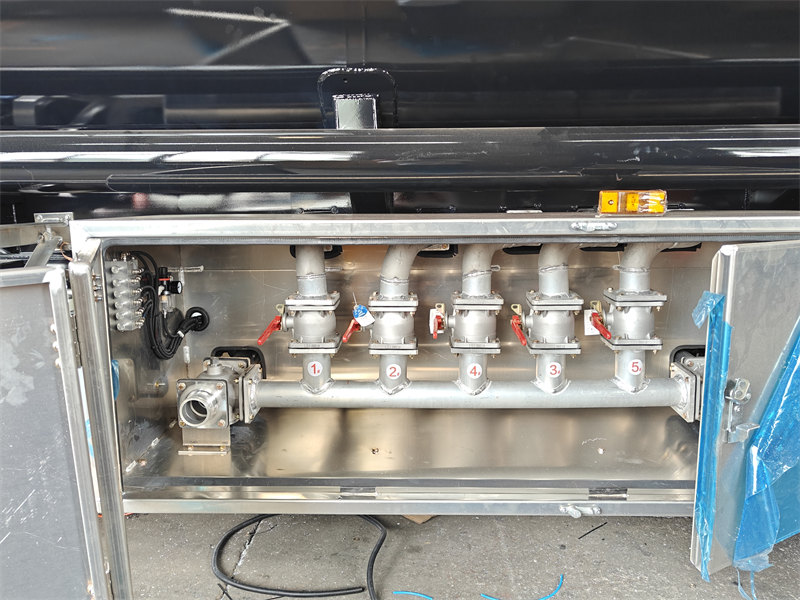

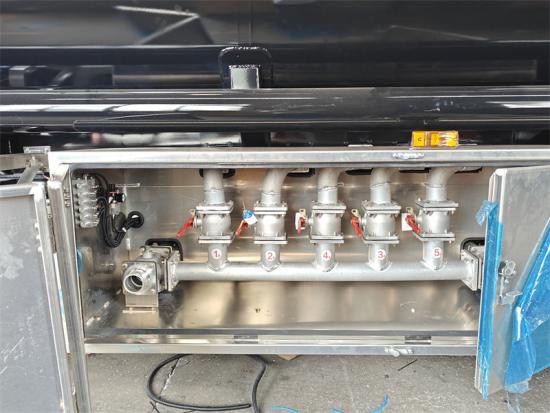

Discharge valve |
5 set (every compartment has one set discharge valve) |
|
|
Discharging Pipe |
4" rubber hose,2 pcs,6m/each |
|
|

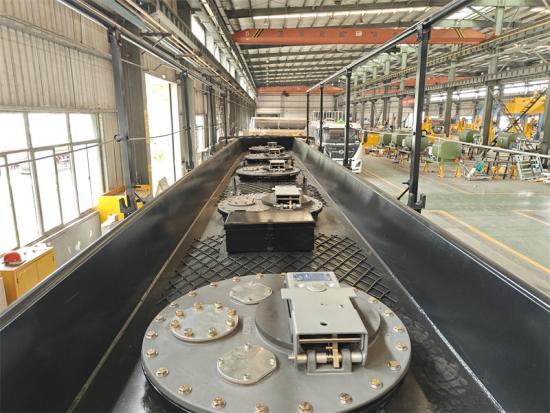

Walkway in the top |
Aluminium diamond plate walkway |
|
|
Loading system |
Bottom loading system |
|
» Ⅲ. Chassis Advantages:
Beiben Axles
Front axle: Beiben 7.5 T driving axle
Rear axle: Beiben 2×13T dual reduction driving axle
Rear axle ratio: 5.263

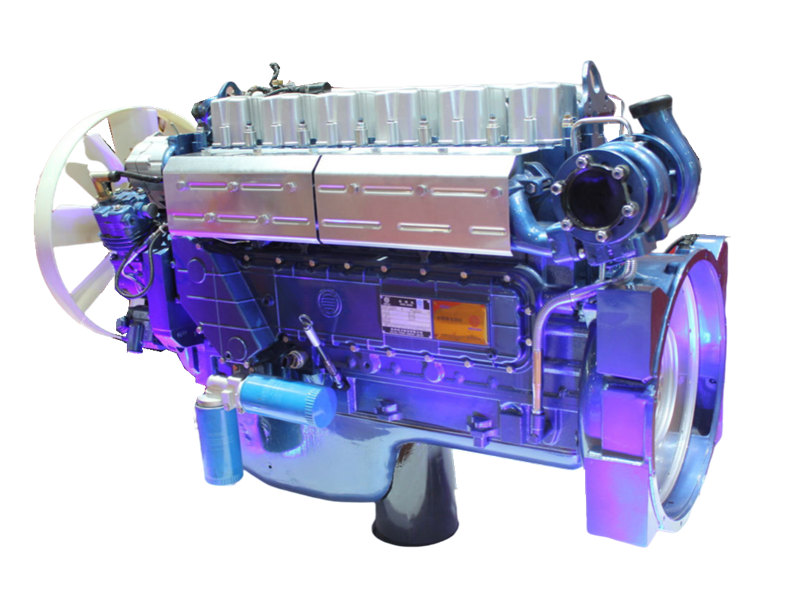

Weichai Engine
Model: WP10.380E32
Number of cylinders: 6
Power: 380HP/280KW
Displacement: 9726ml
Rated speed: 2200 rpm
Max. torque: 1600 N.m

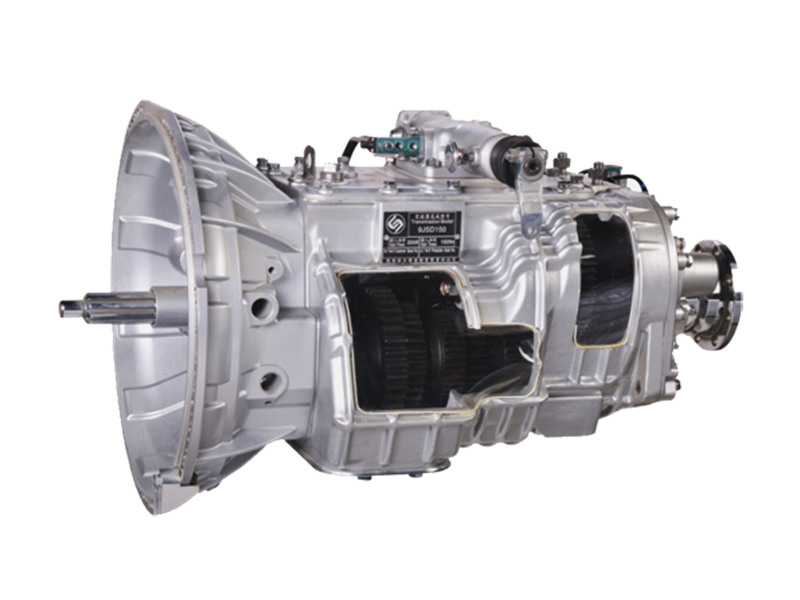

FAST Gearbox
Model: 9JS150A
Gear: 9-speed forwards and 1 reverse
Rated input power: 225 kw
Rated input torque: 1500 N.m
Suspension system
Equipped with integrated balance suspension system developed based on Benz technology.
Front leaf spring: 10 pcs
Rear leaft spring: 13 pcs
U-shape bolts: 4 pcs
» Ⅳ. Feul Tanker Features:
Fuel pump
Model:
80YHCB60
Flow Rate :
60 m³/h
Working Pressure:
0.6 MPa
Rated Power:
11 kW
Rotational Speed:
970 r/min
Inlet/Outlet Diameter:
80 mm
Allowable Suction Lift:
7 m
Efficiency:
Approx. 72%
Manhole cover
Emergency Opening Pressure:
21 kPa ~ 32 kPa
Maximum Emergency Venting Flow Rate:
7000 m³/h (at 34 kPa)
Material:
Aluminum Alloy
Installation Method:
Clamp-type
Temperature Range:
-20℃ ~ +70℃
API adaptor valve
Nominal Pressure:
0.6 MPa
Maximum Flow Rate:
2500 L/min
Main Body Material:
Aluminum Alloy
Operation Mode:
Manual
Design Temperature:
-20℃ ~ +70℃

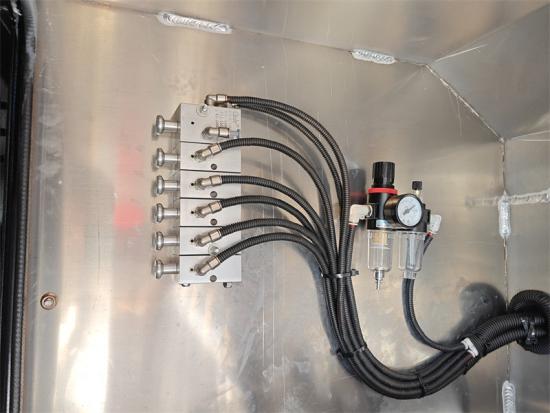

Emergency shutt-off valve
Nominal Pressure:
0.6 MPa
Material:
Aluminum Alloy
Operation Mode:
Pneumatic
Temperature Range:
-20℃ ~ +70℃
Overflow prevention probe
Operating Voltage:
12 VDC
Explosion-Proof Rating:
Exia IIB T4
Response Time:
< 1 s
Design Temperature:
-40 ℃ ~ +60 ℃
Operating Current:
< 5 mA
Operating Medium:
Light fuel oil

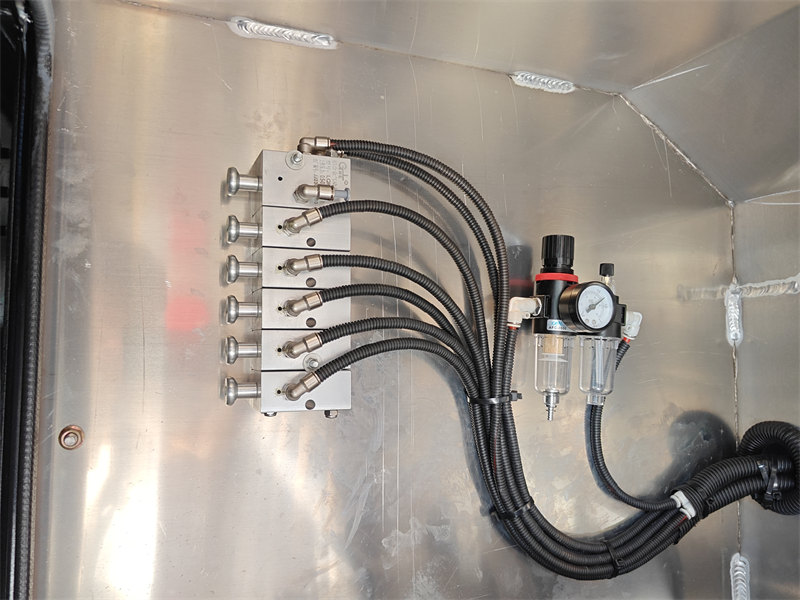

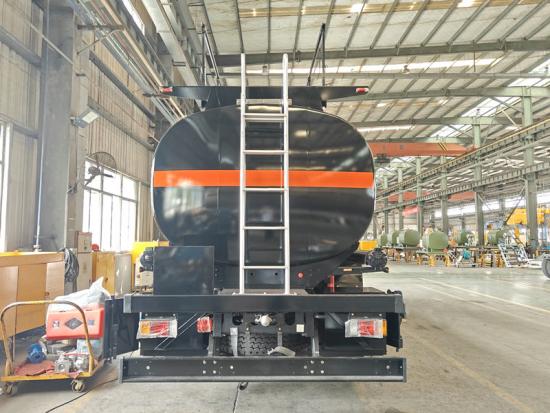

» Ⅴ. Product Details:

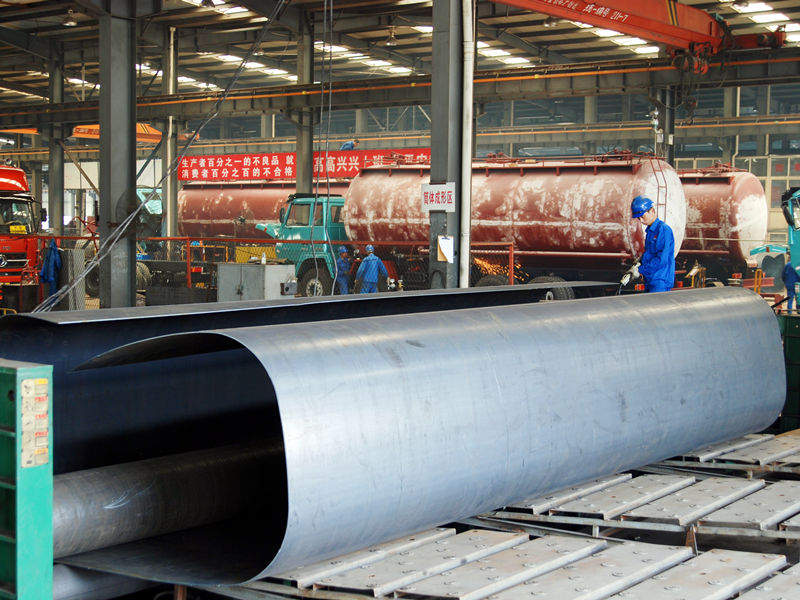

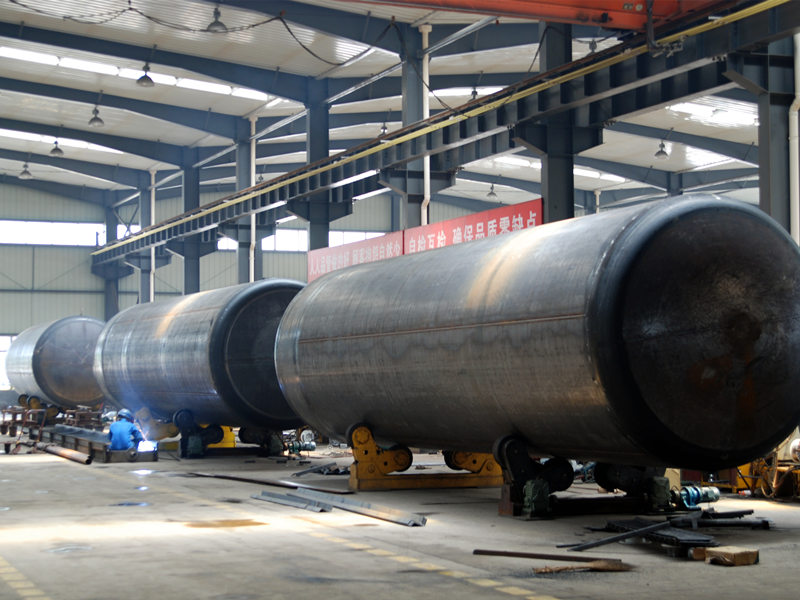

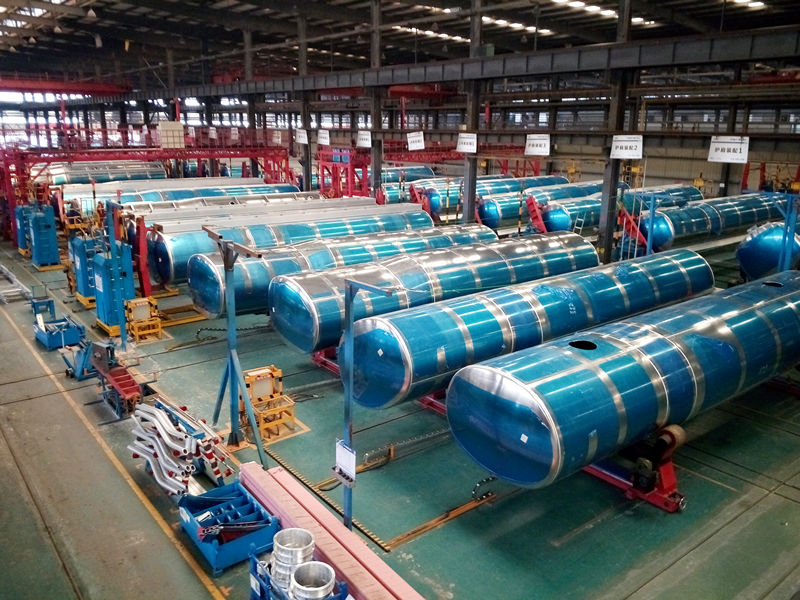

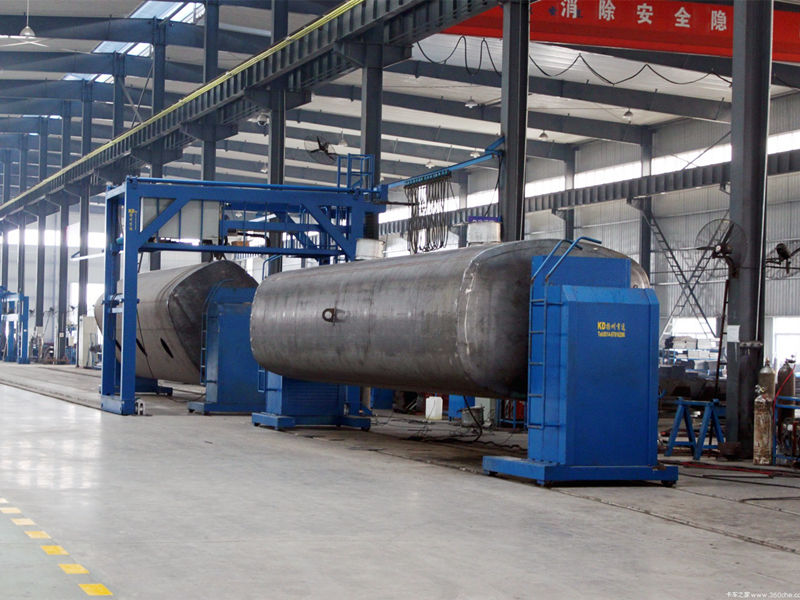

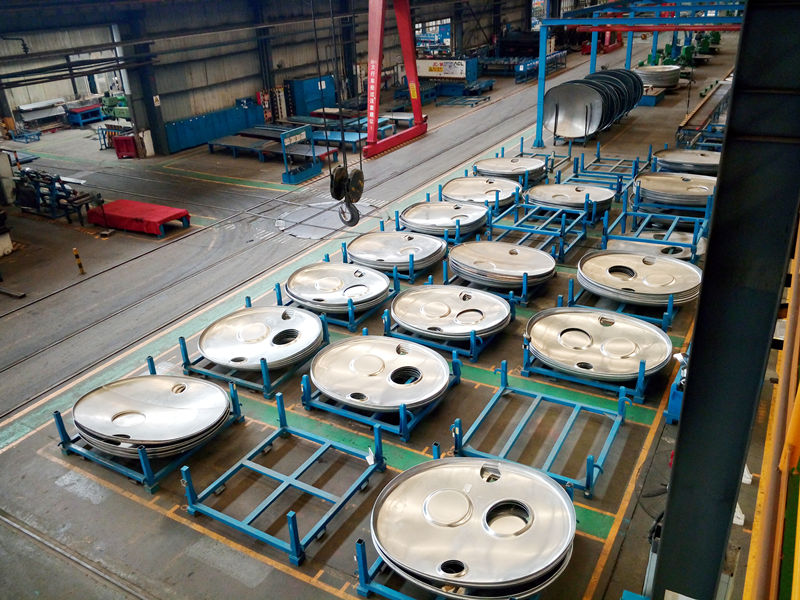

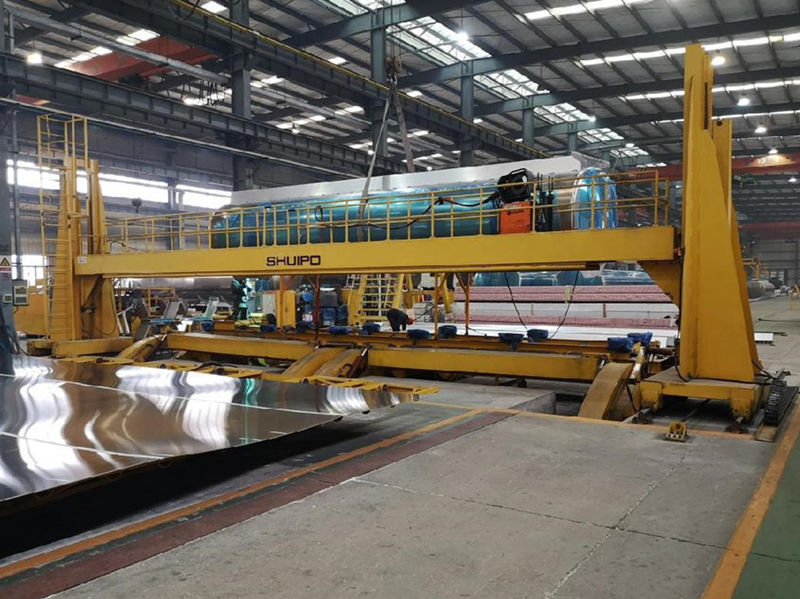

» Ⅵ. Tanker Production Line:
» Ⅶ . Product Applications:
Products --100% china beiben factory trucks!
Shipping --100% fast, Convenience, Efficient!
1.Beiben 4x2, 4x4, 6x4, 6x6, 8x4, 8x8 drive fuel tanker trucks for option
2. Factory direct sale, supply Beiben 10000 liters~30000 liters capacity oil tanker trucks
3.Tanker body can be divided into multiple compartments for transporting different media..
4. Carbon steel, stainless steel, aluminum alloy material is optional.
